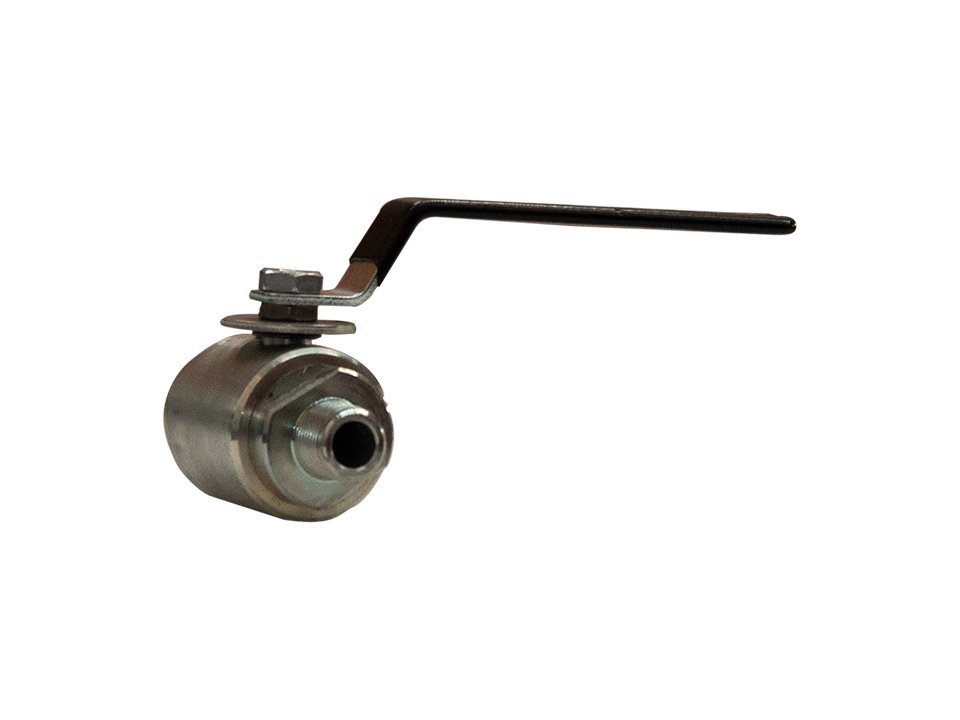

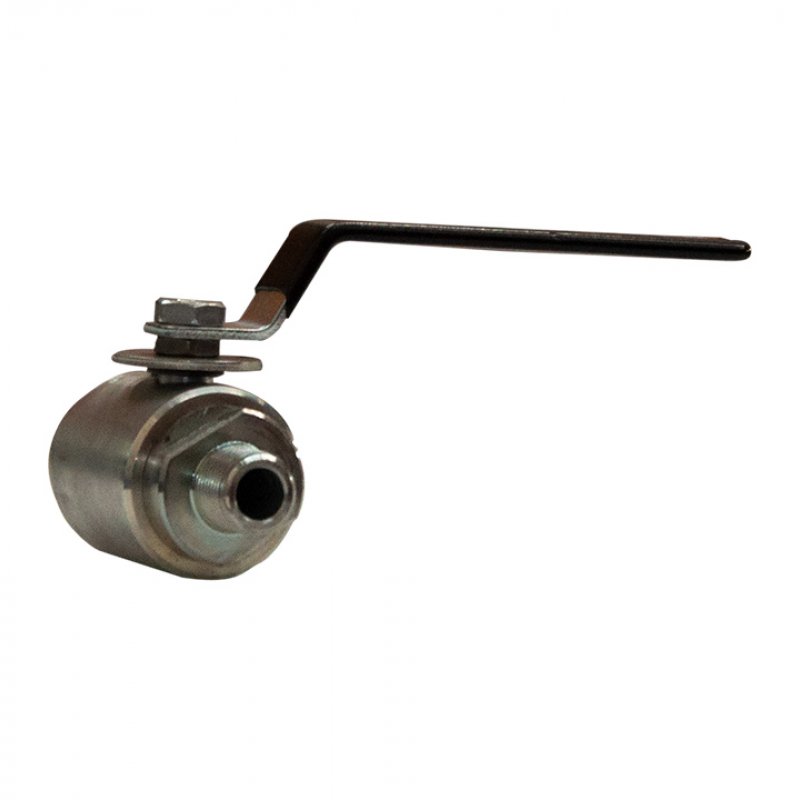

INSTRUMENTATION BALL VALVE
Specifications
Valve Size
1/2″ – 3″
Body Type
Floating
Pressure Class
ANSI 150 / 300 / 600 / 900 / 1500
End Connection
RF / RTJ / BW / SW / Threaded
Bore
Full Bore / Reduced Bore
Operator
Lever / Actuator
Material
Carbon Steel / Stainless Steel / Duplex / Alloy Steel
Operating Temperature
Low / Standard / High
Leakage Class
API 598 / ANSI FC70-2 / ISO 5208
Design Standard
ASME B16.34 / ISO 14313 / ISO 17292
Face to Face Standard
ASME B16.10 / Acc. To Manufacturer Specs.
End Connection Standard
ASME B16.5 / ASME B16.25/ DIN EN 1092-1
Test Standard
API 598 / ISO 14313
Fire Safe Standard
API 607 / ISO 10497 / API 6FA
Certification
EN 10204 3.1 – 3.2 / ISO 15848 Fugitive Emission / 2014-68-EU PED
